StarTech 4 Port RS232 Mini PCI Express Serial Card w/ 16650 (MPEX4S552)

2 Reviews

$40.72

Part #: MPEX4S552 Original

StarTech 4 Port RS232 Mini PCI Express Serial Card w/ 16650 (MPEX4S552)

Name: StarTech 4 Port RS232 Mini PCI Express Serial Card w/ 16650 (MPEX4S552)
Brand: StarTech
SKU: 322751
Price: 40.7200 USD
Availability: InStock
Rating: 3.5 (2 reviews)

2 Reviews

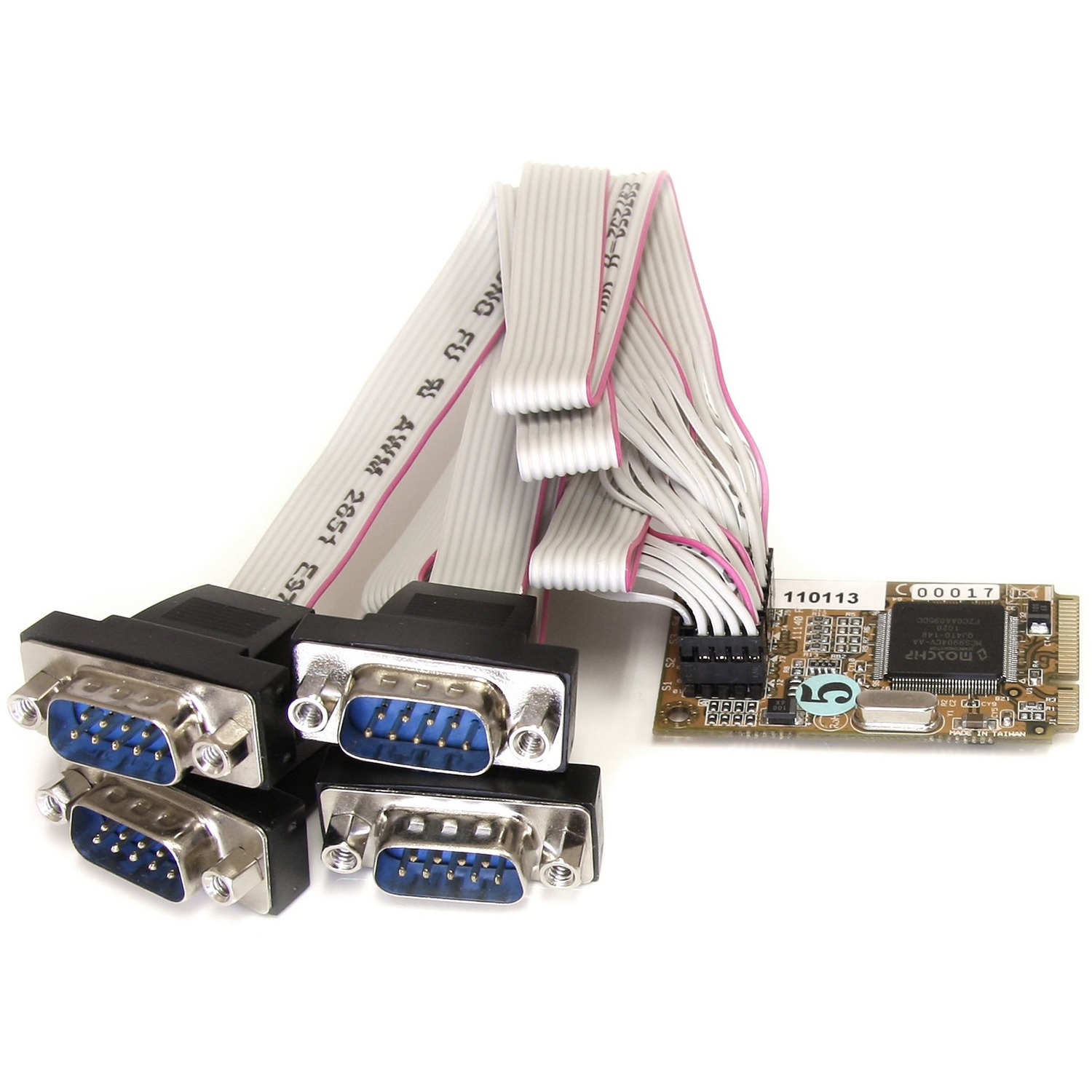

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality. A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards . Backed by a StarTech.com Lifetime Warranty and free lifetime technical support. More from the Manufacturer

Similar Products

Electronics

Extend your EGA monitor cable or mouse cable by 6ft - 6ft rs232 cable - 6ft db9 cable - 6ft db9 serial cable -6ft straight through serial cable

ITEM MXT100

StarTech Null-Modem Serial Cable (MXT100)

Extend your EGA monitor cable or mouse cable by 6ft - 6ft rs232 cable - 6ft db9 cable - 6ft db9 serial cable -6ft straight through serial cable

$5.57

In Stock

ITEM MXT100FF

StarTech 6 ft Straight Through Serial Cable - DB9 F/F (MXT100FF)

DB-9 Female - DB-9 Female - 6ft

$5.42

In Stock

Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter

ITEM PEX4S553B

StarTech 4 Port PCI Express Serial Card w/ Breakout Cable (PEX4S553B)

Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter

Out of Stock

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

ITEM PEX4S232485

StarTech 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 (PEX4S232485)

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

$147.35

In Stock

ITEM PEX16S550LP

StarTech 16 Port PCI Express Serial Card - Low-Profile - High-Speed PCIe Serial Card with 16 DB9 RS232 Ports (PEX16S550LP)

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 16-Port PCI Express Serial Card - Low-Profile - High-speed PCIe serial card with 16 DB9 RS232 Ports (up to 921.6 Kbps) - Multiport serial adapter card

$421.68

In Stock

ITEM PEX8S1050LP

StarTech 8-Port PCI Express RS232 Serial Adapter Card -PCIe to Serial DB9 Controller 16C1050 UART - Low Profile - 15kV ESD - Win/Linux (PEX8S1050LP)

8 port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD/Systembase SB16C1058PCI - Bi-directional speed 921.6Kbps/port|256 byte FIFO - Controller card w/pin 9 power 5v/12v w/3A max - 2xDB44 to DB9 cables w/Hex nuts - Win/Linux - Low Profile

$206.89

In Stock

ITEM PEX4S953

StarTech 4-port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS-232 Controller Card - 16950 UART - Windows/Linux (PEX4S953)

4 port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Std bracket (low profile incl); Breakout cable - Win/Linux

$107.15

In Stock

ITEM PEX4S953LP

StarTech 4-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux (PEX4S953LP)

$107.15

In Stock

Product Specs

Brand

StarTech
Category

StarTech Technology - StarTech Electronics
Model

MPEX4S552

Card Length

Full-length
Country of Origin

Taiwan
Environmental Certification

RoHS, WEEE, REACH
Environmentally Friendly

Yes
Form Factor

Plug-in Card
Height

1.2"
Host Interface

Mini PCI Express
Limited Warranty

Lifetime

Manufacturer

StarTech.com
Manufacturer Part Number

MPEX4S552
Manufacturer Website Address

http://www.startech.com
Maximum Data Transfer Rate

7.20 Mbit/s
Package Contents
- 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
- 4 x DB9 Ribbon Cable
- 1 x Driver CD
- 1 x Instruction Manual
Ports Expandability

4 x DB-9 RS-232 - Serial
Product Type

Multiport Serial Adapter
TAA Compliant

Yes
Weight (Approximate)

5.30 oz
Width

0.4"

StarTech 4 Port RS232 Mini PCI Express Serial Card w/ 16650 (MPEX4S552) Reviews

Review

3.5 Out of 5

(2 reviews)

Write a review

5 star0%

4 star50%

3 star50%

2 star0%

1 star0%

Bluedogink.com is a leading provider of printer, printer supplies, office and paper products. Our wholesale price on StarTech 4 Port RS232 Mini PCI Express Serial Card w/ 16650 (MPEX4S552) is part of our commitment to provide consumers with the lowest discount price available. Our customers are very important to us. We cater to many industries including military, government, schools, educational, medical, corporate, healthcare, legal, accounting, finance and many more. So, act now and StarTech 4 Port RS232 Mini PCI Express Serial Card w/ 16650 (MPEX4S552) at our low price.
