StarTech 4 Port PCI Express Serial Card w/ Breakout Cable (PEX4S553B)

Write a review

$103.16

Part #: PEX4S553B Original

StarTech 4 Port PCI Express Serial Card w/ Breakout Cable (PEX4S553B)

Name: StarTech 4 Port PCI Express Serial Card w/ Breakout Cable (PEX4S553B)
Brand: StarTech
SKU: 322655
Price: 103.1600 USD
Availability: InStock

Write a review

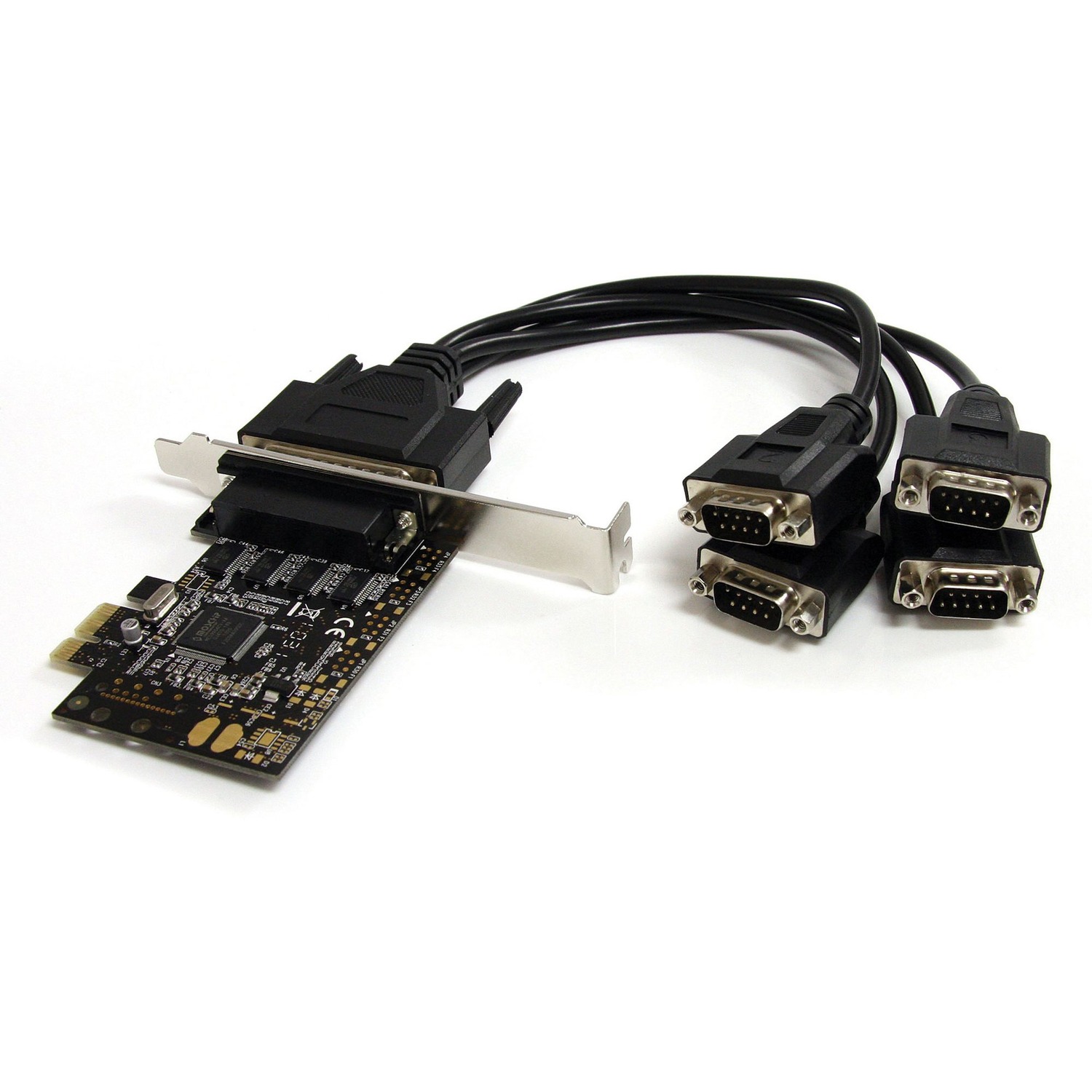

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot. The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS. This product is a replacement for our PEX4S552B card. Backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer

Similar Products

Electronics

Extend your EGA monitor cable or mouse cable by 6ft - 6ft rs232 cable - 6ft db9 cable - 6ft db9 serial cable -6ft straight through serial cable

ITEM MXT100

StarTech Null-Modem Serial Cable (MXT100)

Extend your EGA monitor cable or mouse cable by 6ft - 6ft rs232 cable - 6ft db9 cable - 6ft db9 serial cable -6ft straight through serial cable

$5.57

In Stock

Transfer files via serial connection - 10ft null modem cable - 10ft null modem serial cable - 10ft rs232 null modem cable

ITEM SCNM9FF

StarTech Serial Null modem cable - DB-9 (F) - DB-9 (F) - 3 m (SCNM9FF)

Transfer files via serial connection - 10ft null modem cable - 10ft null modem serial cable - 10ft rs232 null modem cable

$4.48

In Stock

ITEM MXT100FF

StarTech 6 ft Straight Through Serial Cable - DB9 F/F (MXT100FF)

DB-9 Female - DB-9 Female - 6ft

$5.42

In Stock

ITEM SCNM925FM

StarTech 10 ft Cross Wired DB9 to DB25 Serial Null Modem Cable - Null modem cable - DB-9 (F) - DB-25 (M) - 10 ft (SCNM925FM)

DB-9 Female - DB-25 Male - 10ft

$3.80

In Stock

ITEM SCNM9FM

StarTech Serial Null modem cable - DB-9 (F) - DB-9 (F) - 10 ft (SCNM9FM)

DB-9 Female - DB-9 Male - 10ft

$4.51

In Stock

ITEM AT925FF

StarTech DB9 to DB25 Serial Cable Adapter - F/F (AT925FF)

1 x DB-9 Female - 1 x DB-25 Female

Out of Stock

1 x DB-9 Female - 1 x DB-25 Male - Beige

ITEM AT925FM

StarTech DB9 to DB25 Serial Cable Adapter - F/M (AT925FM)

1 x DB-9 Female - 1 x DB-25 Male - Beige

$3.99

In Stock

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

ITEM PEX4S232485

StarTech 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 (PEX4S232485)

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

$147.35

In Stock

ITEM PEX16S550LP

StarTech 16 Port PCI Express Serial Card - Low-Profile - High-Speed PCIe Serial Card with 16 DB9 RS232 Ports (PEX16S550LP)

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 16-Port PCI Express Serial Card - Low-Profile - High-speed PCIe serial card with 16 DB9 RS232 Ports (up to 921.6 Kbps) - Multiport serial adapter card

$421.68

In Stock

ITEM PEX8S1050LP

StarTech 8-Port PCI Express RS232 Serial Adapter Card -PCIe to Serial DB9 Controller 16C1050 UART - Low Profile - 15kV ESD - Win/Linux (PEX8S1050LP)

8 port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD/Systembase SB16C1058PCI - Bi-directional speed 921.6Kbps/port|256 byte FIFO - Controller card w/pin 9 power 5v/12v w/3A max - 2xDB44 to DB9 cables w/Hex nuts - Win/Linux - Low Profile

$206.89

In Stock

ITEM PEX4S953

StarTech 4-port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS-232 Controller Card - 16950 UART - Windows/Linux (PEX4S953)

4 port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Std bracket (low profile incl); Breakout cable - Win/Linux

$107.15

In Stock

ITEM PEX4S953LP

StarTech 4-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux (PEX4S953LP)

$107.15

In Stock

Product Specs

Brand

StarTech
Category

StarTech Technology - StarTech Electronics
Model

PEX4S553B

Country of Origin

China
Environmental Certification

RoHS, REACH, WEEE
Environmentally Friendly

Yes
Form Factor

Plug-in Card
Height

2.7"
Host Interface

PCI Express x1
Limited Warranty

Lifetime
Manufacturer

StarTech.com
Manufacturer Part Number

PEX4S553B
Manufacturer Website Address

http://www.startech.com
Maximum Data Transfer Rate

1.95 Mbit/s
Package Contents
- 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
- 1 x DB9 Breakout Cable
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Ports Expandability

4 x DB-9 RS-232 - Serial, Via Cable
Product Type

Multiport Serial Adapter
TAA Compliant

Yes
Weight (Approximate)

8.40 oz
Width

0.5"
