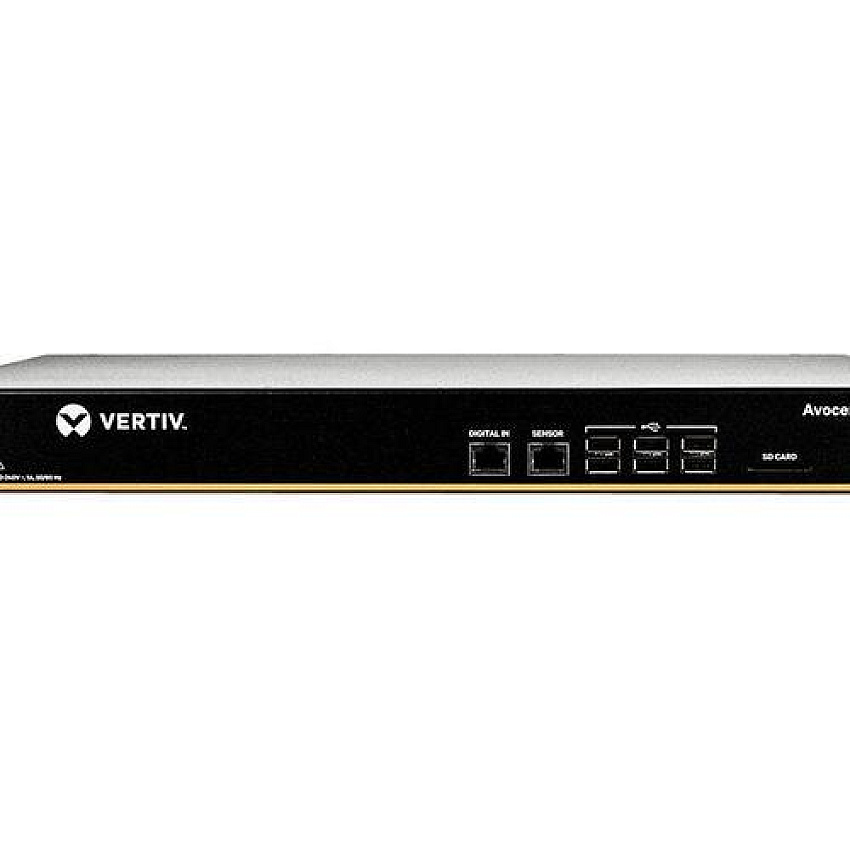

Vertiv 32-port Acs Single Ac (ACS8032SAC400)

Brand

Vertiv

Category

Vertiv Technology - Vertiv Electronics

Model

ACS8032SAC400

Manufacturer Stock No.

ACS8032SAC-400

Information

Product Description:Avocent ACS Advanced Console Server ACS8032SAC-400 - console server Device Type:Console server Form Factor:External - 1U Processor:1 x ARM Cortex-A9 MPCore RAM:1 GB Flash Memory:16 GB Ports Qty:32 Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 Power:AC 120/230 V (50/60 Hz) Power Redundancy:Yes Dimensions (WxDxH):17.3 in x 9.5 in x 1.8 in Weight:7.5 lbs Device Type:Console server Height (Rack Units):1U Width:17.3 in Depth:9.5 in Height:1.8 in Weight:7.5 lbs Processors Installed:1 x ARM Cortex-A9 MPCore Max Supported Qty:1 RAM:1 GB DDR3L SDRAM Flash Memory:16 GB Form Factor:External Ports Qty:32 Connectivity Technology:Wired Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 Network / Transport Protocol:IPSec, NFS Remote Management Protocol:SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI Features:NAT support, Syslog support, packet filtering, IPv6 support, temperature sensor, SNMP trap, e-mail notification Authentication Method:Kerberos, SecurID, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory, Extensible Authentication Protocol (EAP), DSView Supported Flash Memory Cards:SD Memory Card Interfaces:32 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x - SFP (mini-GBIC) ¦ 8 x USB 2.0 - Type A ¦ 1 x sensor - RJ-45 ¦ 4 x sensor Compliant Standards:FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, KCC, RCM, CU Power Device:Internal power supply Installed Qty:1 Max Supported Qty:2 Power Redundancy:Yes Voltage Required:AC 120/230 V (50/60 Hz) Power Consumption Operational:28 Watt OS Provided:Linux Min Operating Temperature:14 °F Max Operating Temperature:140 °F Humidity Range Operating:20 - 80% (non-condensing) COO:MEXICO TAA compliance:Yes
