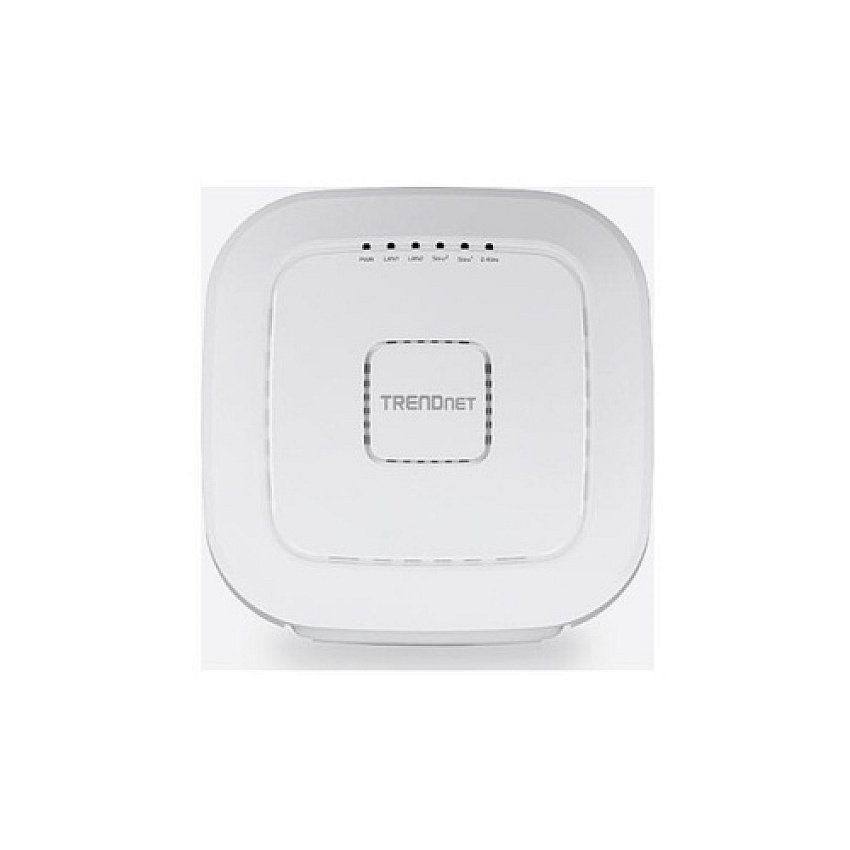

Product Description:TRENDnet TEW 826DAP - wireless access point - Wi-Fi 5 - TAA Compliant
Device Type:Wireless access point
Form Factor:Wall / ceiling mountable - indoor
Data Link Protocol:Gigabit Ethernet
Frequency Band:2.4 GHz (1 band) / 5 GHz (2 bands)
Capacity:SSIDs per radio: 8 ¦ SSIDs total: 24
Included Accessories:Mounting plate
Power Over Ethernet (PoE) Supported:PoE+
Power:AC 120/230 V (50/60 Hz)
TAA Compliant:Yes
Dimensions (WxDxH):8.4 in x 1.4 in x 8.4 in
Weight:24.12 oz
Manufacturer Warranty:3-year warranty
Device Type:Wireless access point
Ruggedized Design:Indoor
Width:8.4 in
Depth:1.4 in
Height:8.4 in
Weight:24.12 oz
Form Factor:Wall / ceiling mountable
Connectivity Technology:Wireless, wired
Data Transfer Rate:867 Mbps
Line Coding Format:DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol:Gigabit Ethernet
Network / Transport Protocol:DHCP, DHCPv6
Remote Management Protocol:SNMP 1, Telnet, SNMP 3
Frequency Band:2.4 GHz (1 band) / 5 GHz (2 bands)
Capacity:SSIDs per radio: 8 ¦ SSIDs total: 24
Wi-Fi Rating:AC2200
Status Indicators:Power, LAN, 5 GHz, 2.4 GHz
Features:VLAN support, traffic shaping, MAC address filtering, IPv6 support, Access Point operational mode, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, event log, Quality of Service (QoS), Multiple SSID support, reset button, Captive Portal, MU-MIMO technology, cable management, band steering, WDS bridge, Tri-Band, WDS access point, bandwidth control per SSID, WDS repeater mode, PoE powered, bridge mode, Pre-Encrypted Wireless
Encryption Algorithm:WPA, WPA2-PSK, WEP, WPA3
Authentication Method:RADIUS, Radio Service Set ID (SSID)
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac Wave 2
Interfaces:1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45
Included Accessories:Mounting plate
Cables Included:1 x network cable - 5 ft
Compliant Standards:IC, FCC, RoHS, WEEE, IP30
TAA Compliant:Yes
Power Over Ethernet (PoE) Supported:PoE+
Power Device:External power adapter
Voltage Required:AC 120/230 V (50/60 Hz)
Power Consumption Operational:18.96 Watt
Service & Support:Limited warranty - 3 years
Min Operating Temperature:32 °F
Max Operating Temperature:104 °F
Humidity Range Operating:0 - 95% (non-condensing)
COO:TAIWAN
TAA compliance:Yes
