Information

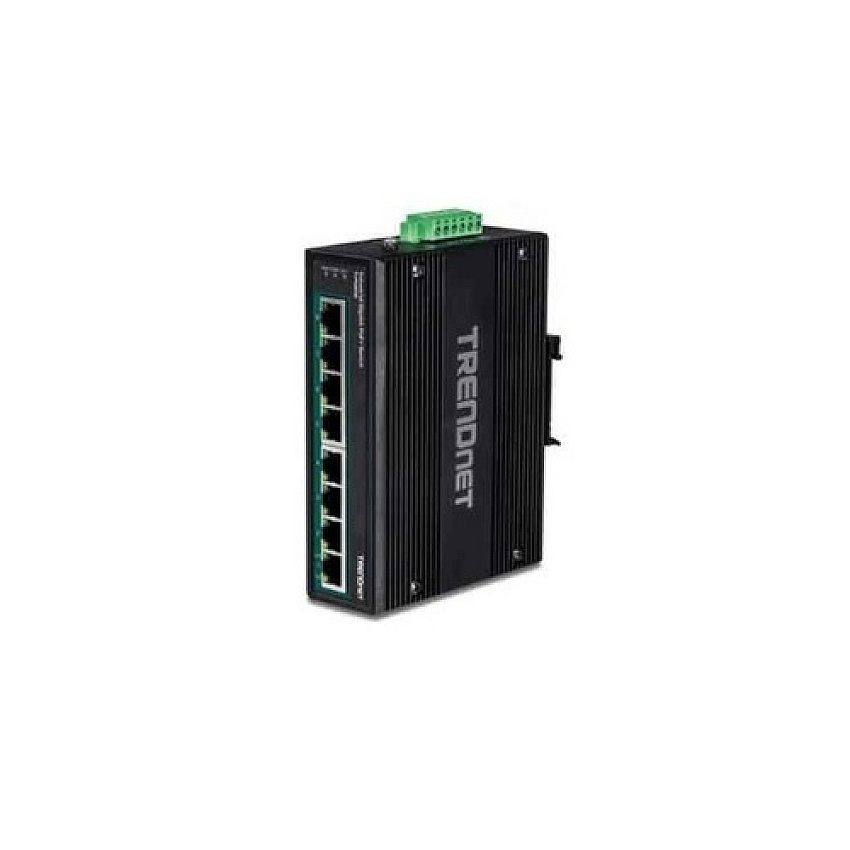

Product Description:TRENDnet TI-PG80B - switch - 8 ports - unmanaged - TAA Compliant
Device Type:Switch - 8 ports - unmanaged
Subtype:Gigabit Ethernet
Ports:8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE):PoE+
PoE Budget:200 W
Performance:Switching fabric bandwidth: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps
MAC Address Table Size:4K entries
Jumbo Frame Support:9KB
Features:Auto-negotiation, store and forward, half duplex mode, full duplex mode, 1MB packet buffer, 8KV ESD Protector, metal housing, shock-resistant, vibration-proof
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Power:DC 24 - 56 V - power adapter not included
Power Redundancy:Yes
Dimensions (WxDxH):1.4 in x 4.1 in x 5.6 in
Weight:21.94 oz
TAA Compliant:Yes
Manufacturer Warranty:Limited lifetime warranty
Device Type:Switch - 8 ports - unmanaged
Enclosure Type:DIN rail mountable, wall-mountable
Subtype:Gigabit Ethernet
Ports:8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE):PoE+
PoE Budget:200 W
Performance:Switching fabric bandwidth: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps
MAC Address Table Size:4K entries
Jumbo Frame Support:9KB
Features:Auto-negotiation, store and forward, half duplex mode, full duplex mode, 1MB packet buffer, 8KV ESD Protector, metal housing, shock-resistant, vibration-proof
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Interfaces:8 x 1000Base-T RJ-45 PoE+
Power Device:External power adapter (not included)
Max Supported Qty:2
Power Redundancy:Yes
Voltage Required:DC 24 - 56 V
Power Consumption Operational:5.3 Watt
Included Accessories:DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF:529,765 hours
Compliant Standards:UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
TAA Compliant:Yes
Width:1.4 in
Depth:4.1 in
Height:5.6 in
Weight:21.94 oz
Service & Support:Limited warranty - lifetime
Min Operating Temperature:-40 °F
Max Operating Temperature:167 °F
Humidity Range Operating:95% (non-condensing)
COO:TAIWAN
TAA compliance:Yes
