Information

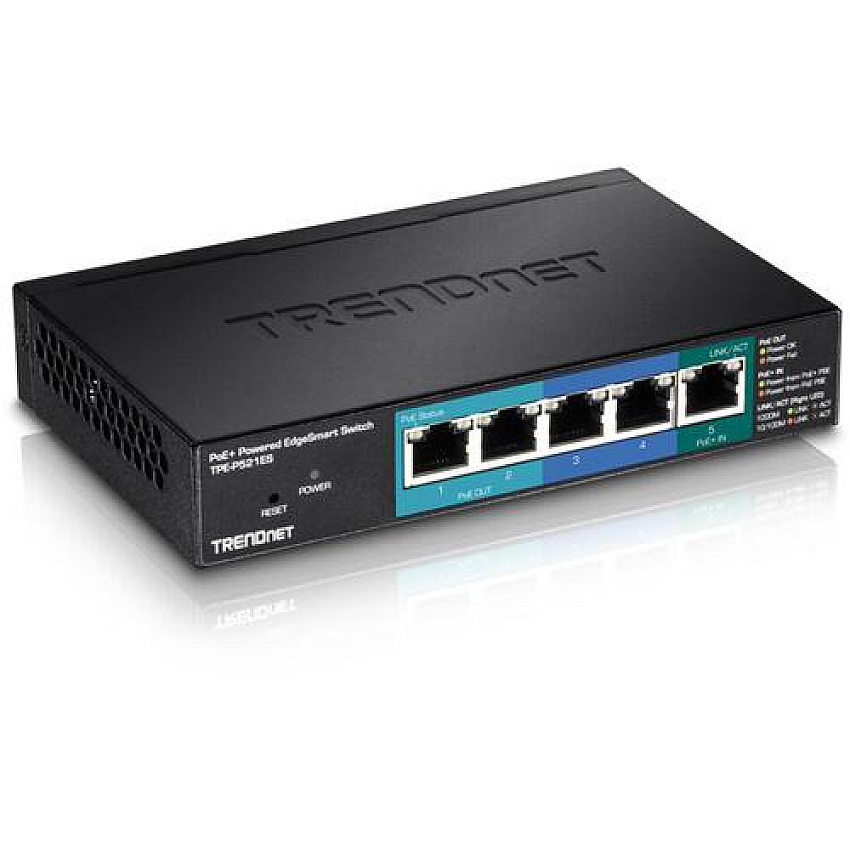

Product Description:TRENDnet TPE P521ES - switch - 5 ports - smart - TAA Compliant
Device Type:Switch - 5 ports - smart
Subtype:Gigabit Ethernet
Ports:1 x 10/100/1000 (PoE+ input) + 2 x 10/100/1000 (PoE) + 2 x 10/100/1000
Power Over Ethernet (PoE):PoE+
PoE Budget:18 W
Performance:Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps
Capacity:VLAN groups: 32 ¦ Multicast groups: 32
MAC Address Table Size:2K entries
Jumbo Frame Support:9KB
Routing Protocol:IGMPv2, IGMP, IGMPv3
Remote Management Protocol:SNMP 1, SNMP 2c, HTTP
Features:IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, short circuit protection, CoS, SP, tagged VLAN, metal housing, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, block unknown multicast, PoE powered, Asymmetric VLAN, PoE Pass Through
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
Dimensions (WxDxH):5.9 in x 3.8 in x 1.1 in
Weight:13.05 oz
TAA Compliant:Yes
Manufacturer Warranty:Limited lifetime warranty
Device Type:Switch - 5 ports - smart
Enclosure Type:Desktop
Subtype:Gigabit Ethernet
Ports:1 x 10/100/1000 (PoE+ input) + 2 x 10/100/1000 (PoE) + 2 x 10/100/1000
Power Over Ethernet (PoE):PoE+
PoE Budget:18 W
Performance:Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps
Capacity:VLAN groups: 32 ¦ Multicast groups: 32
MAC Address Table Size:2K entries
Jumbo Frame Support:9KB
Routing Protocol:IGMPv2, IGMP, IGMPv3
Remote Management Protocol:SNMP 1, SNMP 2c, HTTP
Features:IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, short circuit protection, CoS, SP, tagged VLAN, metal housing, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, block unknown multicast, PoE powered, Asymmetric VLAN, PoE Pass Through
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
RAM:512 KB
Status Indicators:Power, PoE, link/activity
Interfaces:1 x Gigabit LAN RJ-45 PoE+ / input - 30 W ¦ 2 x Gigabit LAN RJ-45 PoE - 15.4 W ¦ 2 x Gigabit LAN RJ-45
Power Provided:30 Watt
Power Consumption Operational:20.4 Watt
MTBF:730,455 hours
Compliant Standards:FCC, RoHS, WEEE
TAA Compliant:Yes
Width:5.9 in
Depth:3.8 in
Height:1.1 in
Weight:13.05 oz
Service & Support:Limited warranty - lifetime
Min Operating Temperature:32 °F
Max Operating Temperature:104 °F
Humidity Range Operating:90% (non-condensing)
COO:CHINA
TAA compliance:No
