Information

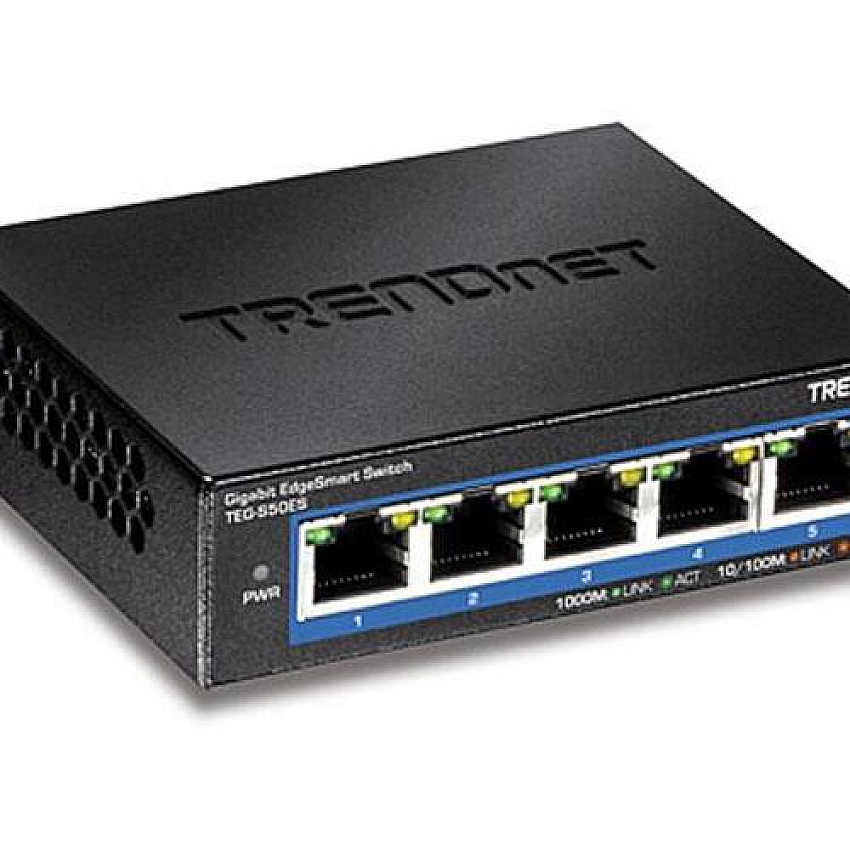

Product Description:TRENDnet TEG S50ES - switch - 5 ports - smart - TAA Compliant
Device Type:Switch - 5 ports - smart
Subtype:Gigabit Ethernet
Ports:5 x 10/100/1000
Performance:Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps
Capacity:VLAN groups: 32 ¦ Multicast groups: 32
MAC Address Table Size:2K entries
Jumbo Frame Support:9KB
Routing Protocol:IGMPv2, IGMP, IGMPv3
Remote Management Protocol:SNMP 1, SNMP 2c, HTTP
Features:VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, STP support, RSTP support, QoS, reset button, fanless, SNMP trap, CoS, SP, tagged VLAN, metal housing, per port bandwidth control, cable test, Link Aggregation, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, Asymmetric VLAN
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3az
Power:AC 120/230 V (50 - 60 Hz) 0.2 A
Dimensions (WxDxH):4 in x 3.2 in x 1.1 in
Weight:7.9 oz
TAA Compliant:Yes
Manufacturer Warranty:Limited lifetime warranty
Device Type:Switch - 5 ports - smart
Enclosure Type:Desktop, wall-mountable
Subtype:Gigabit Ethernet
Ports:5 x 10/100/1000
Performance:Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps
Capacity:VLAN groups: 32 ¦ Multicast groups: 32
MAC Address Table Size:2K entries
Jumbo Frame Support:9KB
Routing Protocol:IGMPv2, IGMP, IGMPv3
Remote Management Protocol:SNMP 1, SNMP 2c, HTTP
Features:VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, STP support, RSTP support, QoS, reset button, fanless, SNMP trap, CoS, SP, tagged VLAN, metal housing, per port bandwidth control, cable test, Link Aggregation, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, Asymmetric VLAN
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3az
RAM:125 KB
Status Indicators:Power, PoE, link/activity
Interfaces:5 x Gigabit LAN RJ-45
Power Device:External power adapter
Power Provided:5 V - 1 A
Voltage Required:AC 120/230 V (50 - 60 Hz)
Electric Current Required:0.2 A
Power Consumption Operational:3.42 Watt
MTBF:1,633,047 hours
Compliant Standards:FCC, RoHS, WEEE
TAA Compliant:Yes
Width:4 in
Depth:3.2 in
Height:1.1 in
Weight:7.9 oz
Service & Support:Limited warranty - lifetime
Min Operating Temperature:32 °F
Max Operating Temperature:104 °F
Humidity Range Operating:90% (non-condensing)
COO:CHINA
TAA compliance:No
