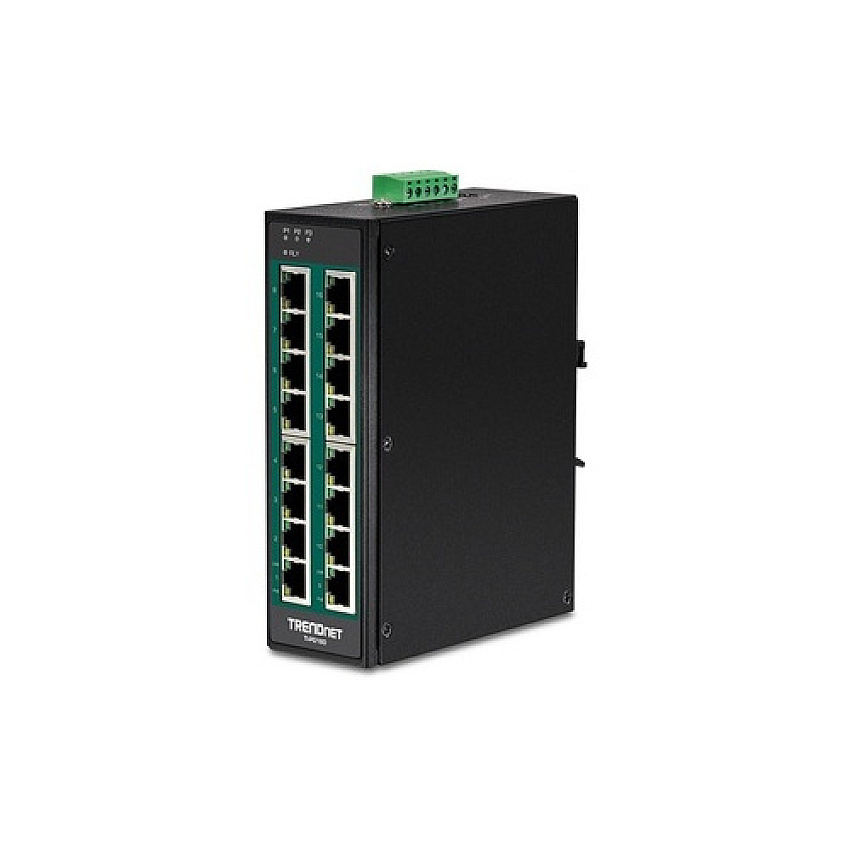

Trendnet 16-port Hardened Industrial Gigabit Poe+ Din-rail Switch (TIPG160)

Brand

Trendnet

Category

Trendnet Technology - Trendnet Electronics

Model

TIPG160

Manufacturer Stock No.

TI-PG160

Information

Product Description:TRENDnet TI-PG160 - switch - 16 ports - unmanaged - TAA Compliant Device Type:Switch - 16 ports - unmanaged Subtype:Gigabit Ethernet Ports:16 x 10/100/1000 (PoE+) Power Over Ethernet (PoE):PoE+ PoE Budget:240 W Performance:Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps MAC Address Table Size:8K entries Jumbo Frame Support:9KB Features:Half duplex mode, full duplex mode, 512KB packet buffer, metal housing, 8KV ESD Protector (air-gap discharge) Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at Power:AC 120/230 V (50/60 Hz) - power adapter not included Power Redundancy:Yes Dimensions (WxDxH):1.9 in x 4.7 in x 6.1 in Weight:17.64 oz TAA Compliant:Yes Manufacturer Warranty:Limited lifetime warranty Device Type:Switch - 16 ports - unmanaged Enclosure Type:DIN rail mountable, wall-mountable Subtype:Gigabit Ethernet Ports:16 x 10/100/1000 (PoE+) Power Over Ethernet (PoE):PoE+ PoE Budget:240 W Performance:Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps MAC Address Table Size:8K entries Jumbo Frame Support:9KB Features:Half duplex mode, full duplex mode, 512KB packet buffer, metal housing, 8KV ESD Protector (air-gap discharge) Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at Interfaces:8 x 1000Base-T RJ-45 PoE+ - 30 W Power Device:External power adapter (not included) Max Supported Qty:2 Power Redundancy:Yes Voltage Required:AC 120/230 V (50/60 Hz) Power Consumption Operational:5.76 Watt Included Accessories:DIN-rail mounting kit, wall mounting kit, removable terminal block MTBF:699,103 hours Compliant Standards:UL, FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 TAA Compliant:Yes Width:1.9 in Depth:4.7 in Height:6.1 in Weight:17.64 oz Service & Support:Limited warranty - lifetime Min Operating Temperature:-40 °F Max Operating Temperature:167 °F Humidity Range Operating:95% (non-condensing) COO:TAIWAN TAA compliance:Yes
