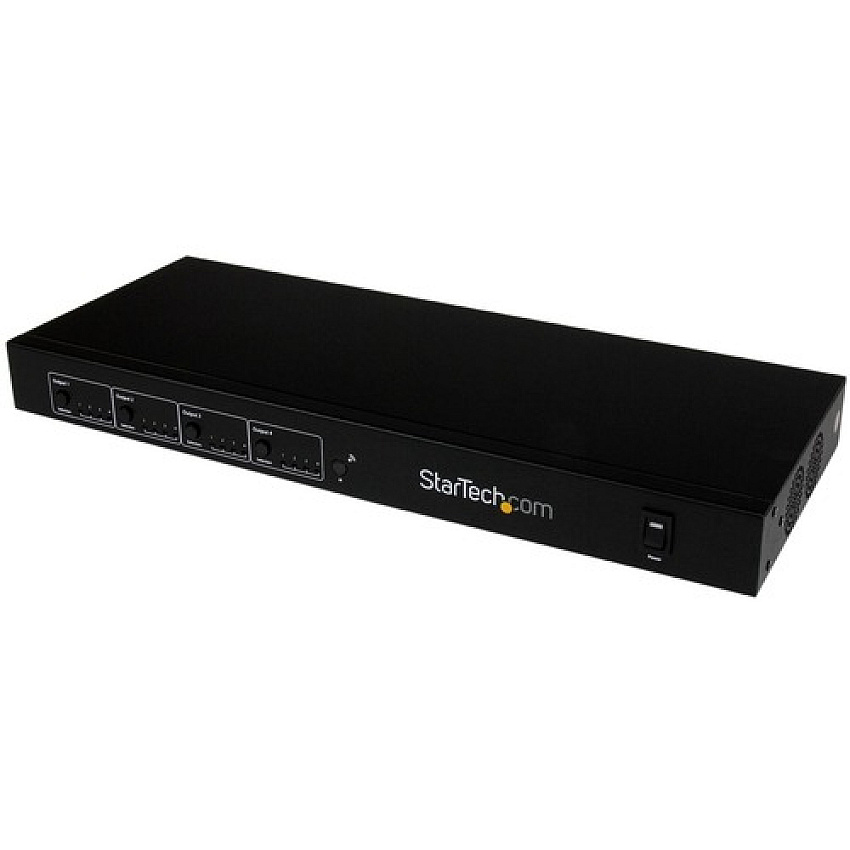

StarTech 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p (ST424HDBT)
Write a review
StarTech 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p (ST424HDBT)

$1,181.05

Part #: ST424HDBT Original

StarTech 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p (ST424HDBT)

Write a review

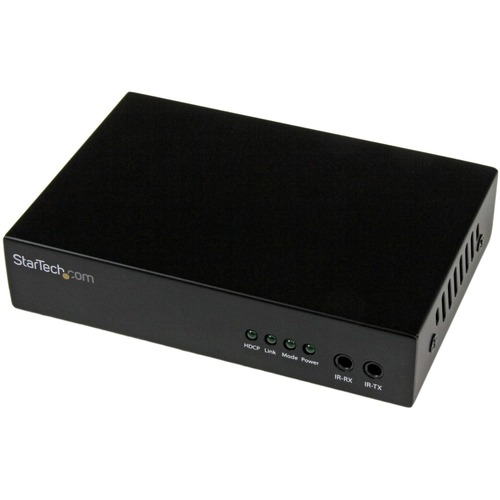

This HDBaseTHDMI Matrix Switch and Cat5 extender is an all-in-one digital signage solution that enables you to extend four distinct HDMI audio/video sources up to 230ft (70m), to four remote displays usingSTHDBTRX receiver units (sold separately). Matrix switching allows each of the remote displays to output and switch between any of the video sources. What is HDBaseT? HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable. Simplify your setup The switch extends HDMIusing standard Cat5e or Cat6 Ethernet cable withRJ45 connectors, allowing you to use your existing cabling infrastructure, with no added cost in specialized cabling or connectors. Plus, because theHDMI extender also allows for matrix switching in one easy-to-use and clutter-free device, iteliminates theexpense and hassle of running multiple devices. Extend more with HDBaseT For complete end-to-end control the switch can extend Infrared using the IR extender and receiver cables included with the STHDBTRX receiver units (soldseparately).For local operation, the HDMI switch also includes a remote control, and easy-to-use front panel buttons that allow you to toggle between video sources. High-Definition picture quality from an impressive distance Ideal for High-Definition applications, the matrix switch supports 1920x1200/1080p video resolutions and digital audio. Plus, built-in EDID monitor emulation ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation. The ST424HDBT isbacked by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

Similar Products View Product Specs

$1,181.05

Part #: ST424HDBT Original

Product Specs

  • Connectivity (RJ-45)

    Yes

  • Depth

    17.3"

  • Device Supported

    Display, Projector

  • Environmental Certification

    RoHS, WEEE

  • Environmentally Friendly

    Yes

  • Form Factor

    Wall Mountable

  • Graphics Modes

    WUXGA

  • HDMI In

    Yes

  • HDMI Out

    Yes

  • Height

    2"

  • Limited Warranty

    2 Year

  • Manufacturer

    StarTech.com

  • Manufacturer Part Number

    ST424HDBT

  • Manufacturer Website Address

    http://www.startech.com

  • Maximum Operating Distance

    230 ft

  • Maximum Video Resolution

    1920 x 1200

  • Media Type Supported

    Twisted Pair

  • Number of Connectivity (RJ-45) Ports

    5

  • Number of Displays Supported

    4

  • Number of HDMI Inputs

    4

  • Number of HDMI Outputs

    4

  • Number of Input Devices Supported

    4

  • Package Contents

    • 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) 1080p
    • 1 x Remote control
    • 1 x Mounting brackets
    • 1 x Software Installation CD
    • 1 x Universal Power Adapter (NA/UK/EU) or AU in Australia
    • 1 x Quick Install Guide

  • Packaged Quantity

    1

  • Product Type

    Audio/Video Switchbox

  • Weight (Approximate)

    5.08 lb

  • Width

    6.7"
