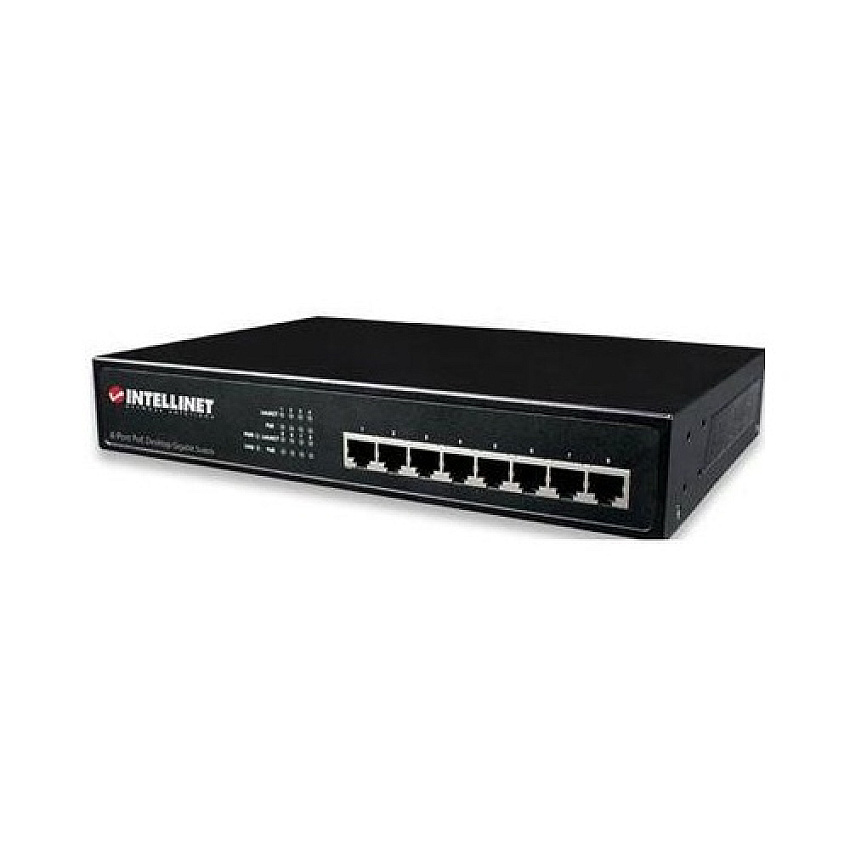

Intellinet 8 Port Poe+ Gigabit Switch (560641)

Brand

Intellinet

Category

Intellinet Technology - Intellinet Electronics

Model

560641

Manufacturer Stock No.

560641

Information

Network Device Type:Switch Model:IPS-08G-140W Form Factor:Desktop; Rackmount Connectivity Technology:Wired Data Transfer Rate:1000 Mbps Networking / Ports Qty:8 Data Link Protocol:Gigabit Ethernet Max Power Consumption:150 Watt Power / Voltage Required:100 - 240 VAC Features:Provides power and data connection for up to eight PoE network devices; Saves time and money by delivering data and power via existing network cables; 10/100/1000 auto-sensing ports automatically detect optimal network speeds; IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports; PoE power budget of 140 watts; Power output up to 30 watts per port; Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras); Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection; 4 kV surge protection for PoE ports; Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; Supports Jumbo Frames up to 9 kBytes; All RJ45 ports with Auto-MDIX (auto uplink) support; Store and forward switching architecture; IEEE 802.3x flow control for full duplex; Supports up to 8K MAC address entries; 256 kBytes buffer memory; Cooling fan for ventilation; Desktop-size metal case; Includes 19" rackmount brackets; Power Over Ethernet (PoE) Support:YES PoE Power Consumption:140W MAC Address Table Size:8K 10/100/1000BASE-T Ports:8 Interfaces:RJ45 Interfaces:RJ45 10/100/1000BASE-T Ports:8 What's Included:8-Port Gigabit Ethernet PoE+ Switch; Power cable; User manual; 19" mounting brackets; Width:280 Mm Depth:180 Mm Height:44 Mm Weight:2.55 Kg Service & Support Type:Three-Year Warranty Min Operating Temperature:0 celsius Max Operating Temperature:40 celsius Min Storage Temperature:-20 celsius Max Storage Temperature:70 celsisu COO:CHINA TAA compliance:No
