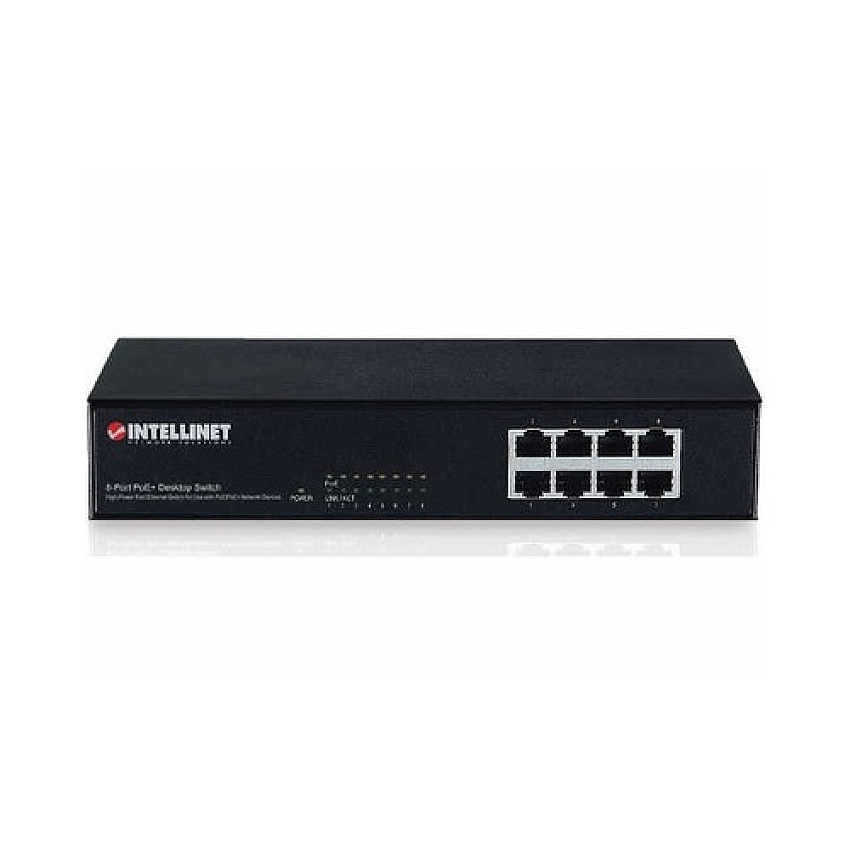

Intellinet 8 Port 10/100 Poe+ Desktop Switch (560764)

Brand

Intellinet

Category

Intellinet Technology - Intellinet Electronics

Model

560764

Manufacturer Stock No.

560764

Information

Network Device Type:Switch Model:IPS-08F-140W Form Factor:Desktop Connectivity Technology:Wired Data Transfer Rate:100 Mbps Networking / Ports Qty:8 Data Link Protocol:Fast Ethernet Max Power Consumption:150 Watt Power / Voltage Required:100 - 240 V AC Features:Provides power and data connection for up to eight PoE network devices; Save time and money by delivering data and power via existing network cables; 10/100 auto-sensing ports automatically detect optimal network speeds; IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports; PoE power budget of 140 watts; Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras); Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection; Energy-saving Energy Efficient Ethernet (IEEE 802.3az) technology; All RJ45 ports with Auto-MDIX (auto uplink) support; Store and forward switching architecture; IEEE 802.3x flow control for full duplex; Supports up to 2K MAC address entries; 96 kBytes buffer memory; Fanless design ideal for silent operation; Desktop-size metal case; Fully NDAA-compliant; Three-Year Warranty; Power Over Ethernet (PoE) Support:YES PoE Power Consumption:140W MAC Address Table Size:2048 entries 10/100BASE-T Ports:8 Interfaces:RJ45 Interfaces:RJ45 10/100BASE-T Ports:8 What's Included:8-Port Fast Ethernet PoE+ Switch; Power cable; User manual; Width:280 Mm Depth:179 Mm Height:44 Mm Weight:1.5 Kg Service & Support Type:Three-Year Warranty Min Operating Temperature:0 celsius Max Operating Temperature:40 celsius Min Storage Temperature:-20 celsius Max Storage Temperature:70 celsius COO:CHINA TAA compliance:No
