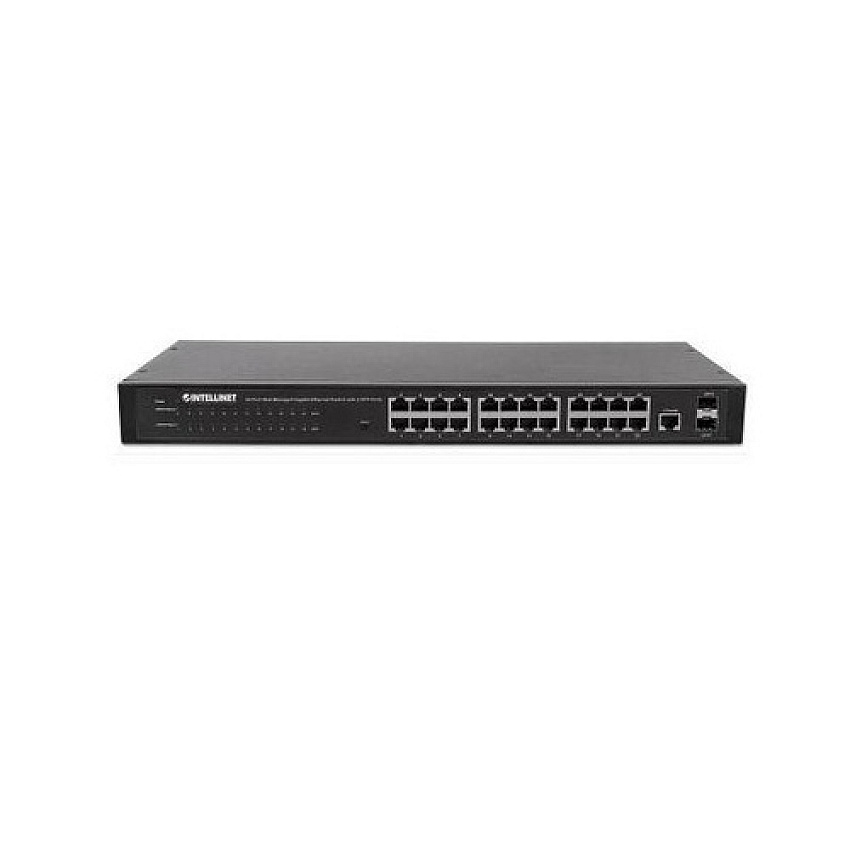

Intellinet 24 Port Managed Gigabit Switch W/2 Sfp (560917)

Brand

Intellinet

Category

Intellinet Technology - Intellinet Electronics

Model

560917

Manufacturer Stock No.

560917

Information

Network Device Type:Switch Model:IES-24GM02 Form Factor:Rackmount Connectivity Technology:Wired Data Transfer Rate:1000 Mbps Networking / Ports Qty:26 Data Link Protocol:Gigabit Ethernet Max Power Consumption:20 Watt Power / Voltage Required:100 - 240 VAC Features:Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds; Two small form-factor pluggable GBIC module slots (SFP); Domotz compatible for cloud management; All RJ45 ports with Auto-MDIX and NWay auto-negotiation support; Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; Web- or Telnet-based configuration; Remote Reboot/restart; SNMP Management and Remote Monitoring (RMON); SNMP V1, V2 with RMON groups 1, 2, 3 & 9; Supports VLAN (tag-based and port-based); 802.1X authentication and IP/MAC based Access Control Lists (ACL); Supports link aggregation (trunking); IGMP Snooping for multicast filtering; Supports bandwidth control per port; Supports port mirroring; Supports three types of QoS: port-based, 802.1p and DSCP; Broadcast storm control with multicast packet rate settings; Supports jumbo frames up to 9 kBytes; Supports Rapid Spanning Tree/Spanning Tree protocol; Store and forward switching architecture; Fanless design ideal for silent operation; Full/half duplex operation; IEEE 802.3x flow control for full duplex; 52 Gbps switch fabric; Supports 8k MAC address entries; 512 kBytes buffer memory; Includes 19" rackmount brackets; Fully NDAA-compliant; MAC Address Table Size:8k 10/100/1000BASE-T Ports:24 SFP Ports:2 Interfaces:RJ45, SFP Interfaces:RJ45, SFP 10/100/1000BASE-T Ports:24 SFP Ports:2 What's Included:24-Port Web-Managed Gigabit Ethernet Switch with 2 SFP Ports; Power cable; 19" rackmount brackets; User manual; Width:440 Mm Depth:205 Mm Height:44 Mm Weight:1.97 Kg Service & Support Type:Three-Year Warranty Min Operating Temperature:0 celsius Max Operating Temperature:40 celsisu Min Storage Temperature:-40 celsius Max Storage Temperature:70 celsius COO:Inquire TAA compliance:Inquire
