Information

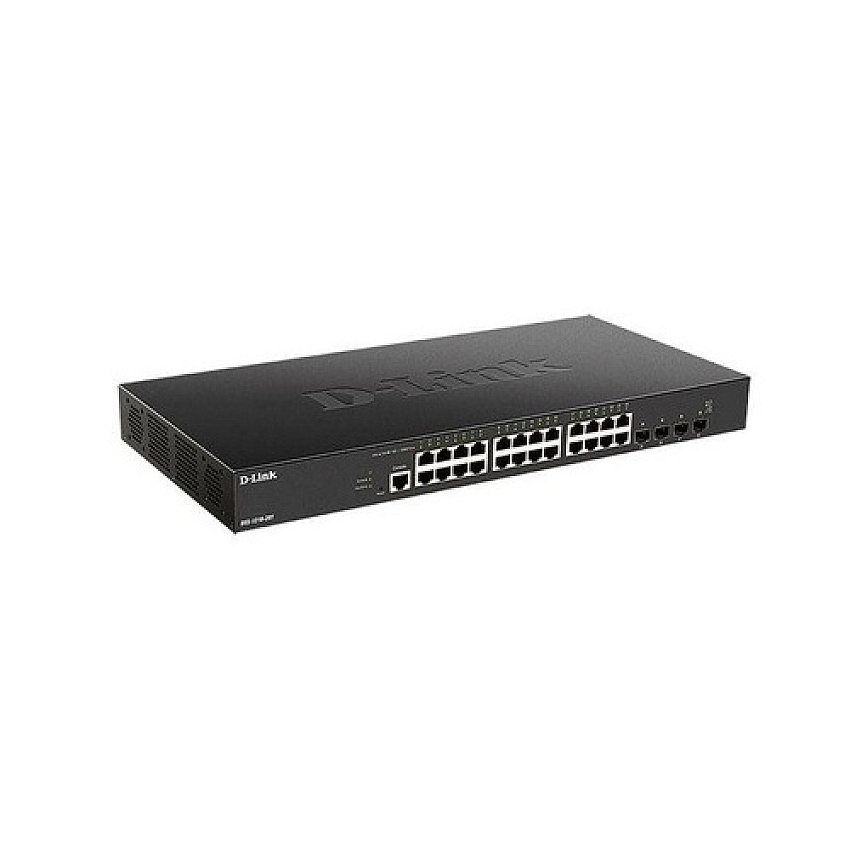

Product Description:D-Link DXS 1210-28T - switch - 28 ports - smart - rack-mountable
Device Type:Switch - 28 ports - smart
Enclosure Type:Rack-mountable
Subtype:10 Gigabit Ethernet
Ports:24 x 10GBase-T + 4 x 25 Gigabit SFP28
Performance:Switching capacity: 680 Mbps ¦ Forwarding performance: 505.92 Mpps
Capacity:VLAN IDs: 4094 ¦ IPv4 routes (static): 128 ¦ IPv6 routes (static): 64 ¦ Static ARP entries: 384
MAC Address Table Size:32000 entries
Jumbo Frame Support:12288 bytes
Routing Protocol:Static IPv4 routing, static IPv6 routing
Remote Management Protocol:SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Features:Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, DWRR, LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, GVRP, static routing, CoS, TFTP client, 4MB packet buffer, ToS, ERPS, system log, IP source guard, DRR, host based access control, Smart Fans
Compliant Standards:IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Power:AC 120/230 V (50/60 Hz)
Dimensions (WxDxH):17.4 in x 8.2 in x 1.7 in
Weight:6.77 lbs
Device Type:Switch - 28 ports - smart
Enclosure Type:Rack-mountable
Subtype:10 Gigabit Ethernet
Ports:24 x 10GBase-T + 4 x 25 Gigabit SFP28
Performance:Switching capacity: 680 Mbps ¦ Forwarding performance: 505.92 Mpps
Capacity:VLAN IDs: 4094 ¦ IPv4 routes (static): 128 ¦ IPv6 routes (static): 64 ¦ Static ARP entries: 384
MAC Address Table Size:32000 entries
Jumbo Frame Support:12288 bytes
Routing Protocol:Static IPv4 routing, static IPv6 routing
Remote Management Protocol:SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption Algorithm:TLS 1.0, PEAP, TTLS, TLS 1.1, TLS 1.2
Authentication Method:RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features:Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, DWRR, LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, GVRP, static routing, CoS, TFTP client, 4MB packet buffer, ToS, ERPS, system log, IP source guard, DRR, host based access control, Smart Fans
Compliant Standards:IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Processor:X ARM Cortex-A9 + Cortex-R5
RAM:256 MB
Flash Memory:64 MB
Status Indicators:Power, fan, link/activity/speed
Interfaces:24 x 10GBase-T RJ-45 ¦ 4 x 25GBase-X SFP28 ¦ 1 x console RJ-45
Power Device:Internal power supply
Voltage Required:AC 120/230 V (50/60 Hz)
Power Consumption Operational:90 Watt
Power Consumption Stand by:33 Watt
Included Accessories:4 rubber feet, 2 x 19" mounting brackets
Cables Included:1 x console cable
Rack Mounting Kit:Included
MTBF:572 820 hours
Compliant Standards:FCC Class A certified, UL, BSMI, CB, IC, VCCI Class A
Width:17.4 in
Depth:8.2 in
Height:1.7 in
Weight:6.77 lbs
Min Operating Temperature:23 °F
Max Operating Temperature:122 °F
Humidity Range Operating:0 - 95% (non-condensing)
Min Storage Temperature:-4 °F
Max Storage Temperature:158 °F
Humidity Range Storage:0 - 95% (non-condensing)
COO:CHINA
TAA compliance:No
