Information

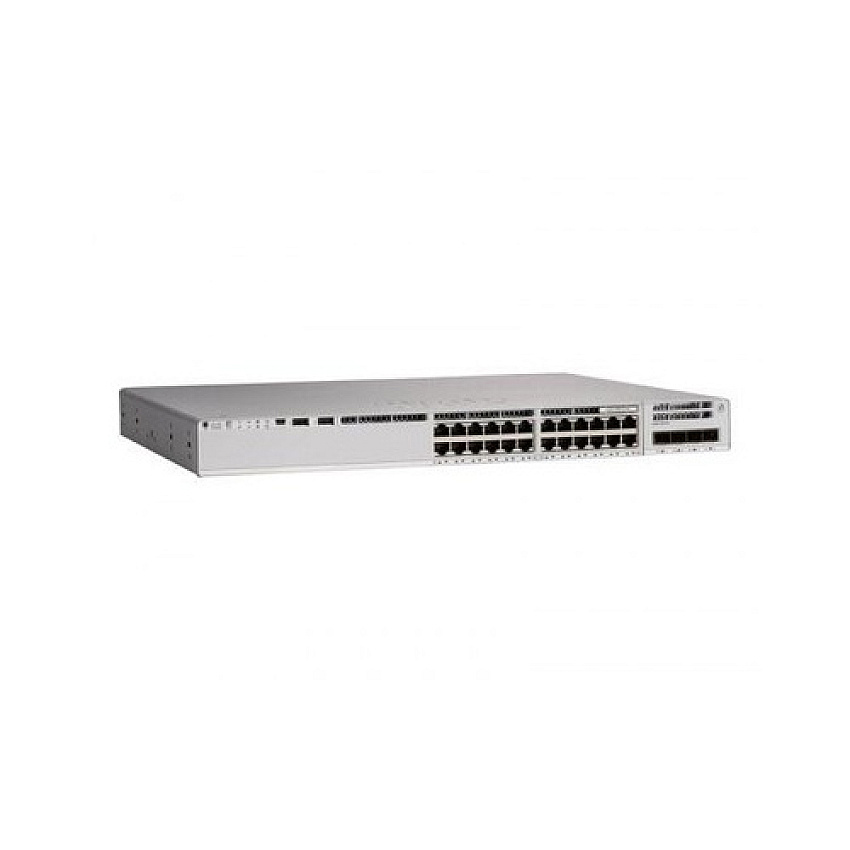

Product Description:Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable
Device Type:Switch - 24 ports - L3 - stackable
Enclosure Type:Rack-mountable
Subtype:Gigabit Ethernet
Ports:24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance:Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Capacity:Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size:16000 entries
Jumbo Frame Support:9198 bytes
Routing Protocol:OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol:SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features:QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power:AC 100-240 V (50 - 60 Hz)
Power Redundancy:Optional
Dimensions (WxDxH):17.5 in x 11.3 in x 1.7 in
Weight:9.59 lbs
Manufacturer Warranty:Limited lifetime warranty
Device Type:Switch - 24 ports - L3 - stackable
Enclosure Type:Rack-mountable
Subtype:Gigabit Ethernet
Ports:24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance:Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Capacity:Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size:16000 entries
Jumbo Frame Support:9198 bytes
Routing Protocol:OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol:SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features:QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM:2 GB
Flash Memory:4 GB
Interfaces:24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Power Device:Internal power supply - hot-plug
Max Supported Qty:2
Power Redundancy:Optional
Voltage Required:AC 100-240 V (50 - 60 Hz)
MTBF:531,030 hours
Compliant Standards:CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Width:17.5 in
Depth:11.3 in
Height:1.7 in
Weight:9.59 lbs
Service & Support:Limited warranty - advance parts replacement - lifetime - response time: next business day
Humidity Range Operating:5 - 90% (non-condensing)
Min Storage Temperature:-40 °F
Max Storage Temperature:158 °F
Humidity Range Storage:5 - 90% (non-condensing)
COO:BRAZIL / BRAZIL / CHINA / CHINA / MALAYSIA / MALAYSIA / BRAZIL / CHINA / MALAYSIA / BRAZIL / CHINA / MALAYSIA
TAA compliance:No
