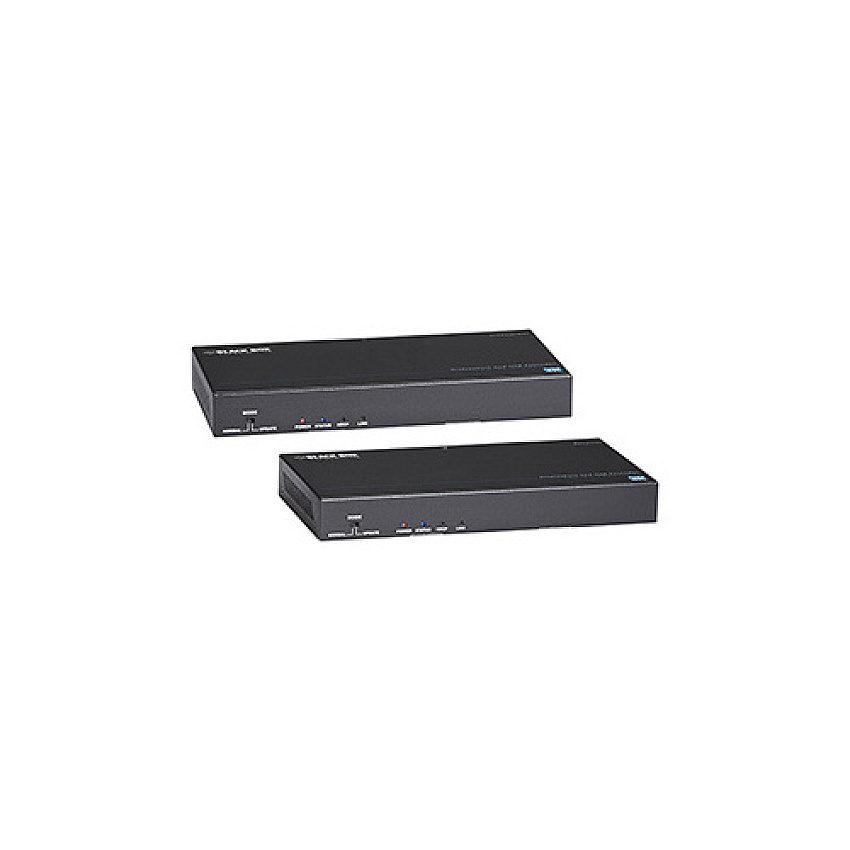

Black Box Video Extender - Displayport, Rs-232, Audio, Usb 2.0, 4k (UVX-DP-TP-100M)

Brand

Black Box

Category

Black Box Technology - Black Box Electronics

Model

UVXDPTP100M

Additional Information

Device Type:Video Extender Form Factor:External Data Transfer Rate:10.2 Gbps Max Resolution (external):3840 x 2160 Max Transfer Distance:100 M Width:7.91 Inch Depth:3.95 Inch Height:0.99 Inch Service & Support Type:3 Year Double Diamond Warranty (Standard) Features:- USB 2.0 passthrough
- Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
- HDCP 2.2 compliant and supports EDID transmission
- Extend your signals as far as 100m over CAT6A/CAT7 cables
- Transmitting uncompressed video, native 4K@30 Hz UHD DisplayPort signals
- Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
- Access distant AV sources or even to control remote computers
- Simultaneously transmits bidirectional analog stereo audio What's Included:- (1) DisplayPort Transmitter
- (1) DisplayPort Receiver
- (1) 12-VDC, 2-A power supply with US, EU, UK, and AU power clips
- (2) 3.5-mm, 2-pin male Phoenix connectors
- (2) Mounting brackets
- User manual
