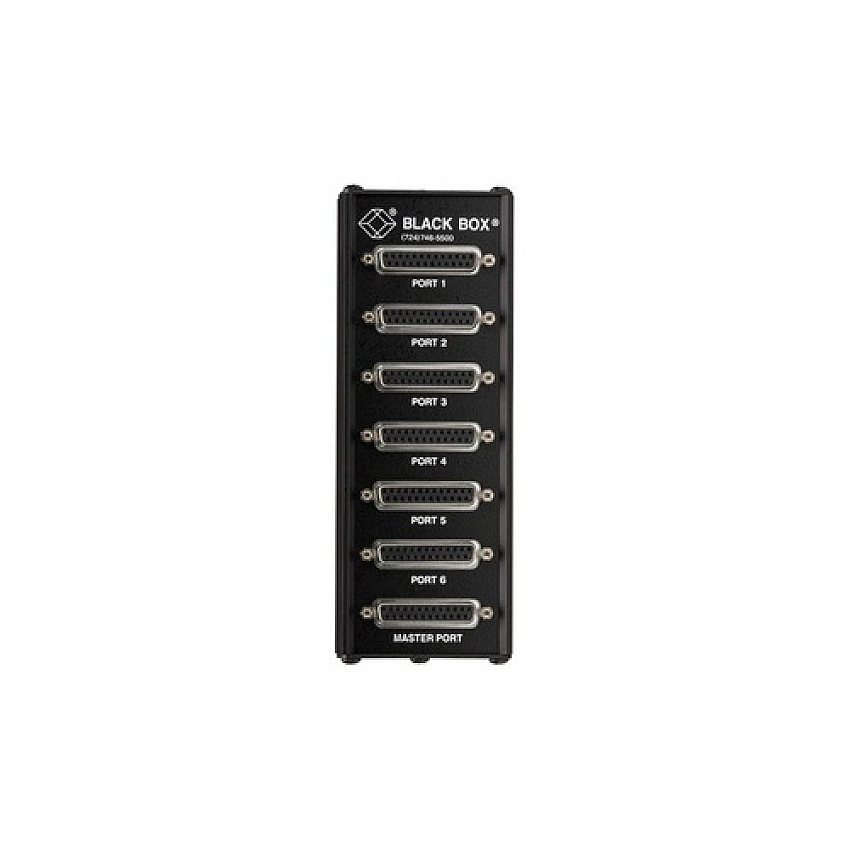

Black Box Rs232 Passive Splitter - Db25, 6-port (TL074A-R4)

Brand

Black Box

Category

Black Box Technology - Black Box Electronics

Model

TL074AR4

Additional Information

Device Type:TBD Networking / Ports Qty:TBD Service & Support Type:1 Year Double Diamond Warranty (Standard) What's Included:- (1) modem splitter
- (1) 6-ft. DB25 male/DB25 female extension cable
- (1) serial DB9 female/DB25 male AT adapter Features:- MASTER port is configured DTE and PORTS 16 are configured DCE
- Signals present on the MASTER connector at pins 1, 3, 5, 6, 7, 8, 15, and 17 are sent to the corresponding pins on each of the PORT connectors.
- Signals present on the PORT connectors at pins 2, 4, and 20 are passively stored and sent to the corresponding pins on the MASTER connector.
- The total combined length of all cables connected to the unit should be less than 50 feet (15.2 m).
- Data coming into the MASTER port on pin 3 of the RS232 DB25 Passive Splitter goes to all three Slave ports since they are all tied common.
- Only one SLAVE port may transmit data to the MASTER port at any one time, Pin 2 on the three SLAVE ports are not tied in common and are isolated from each o
