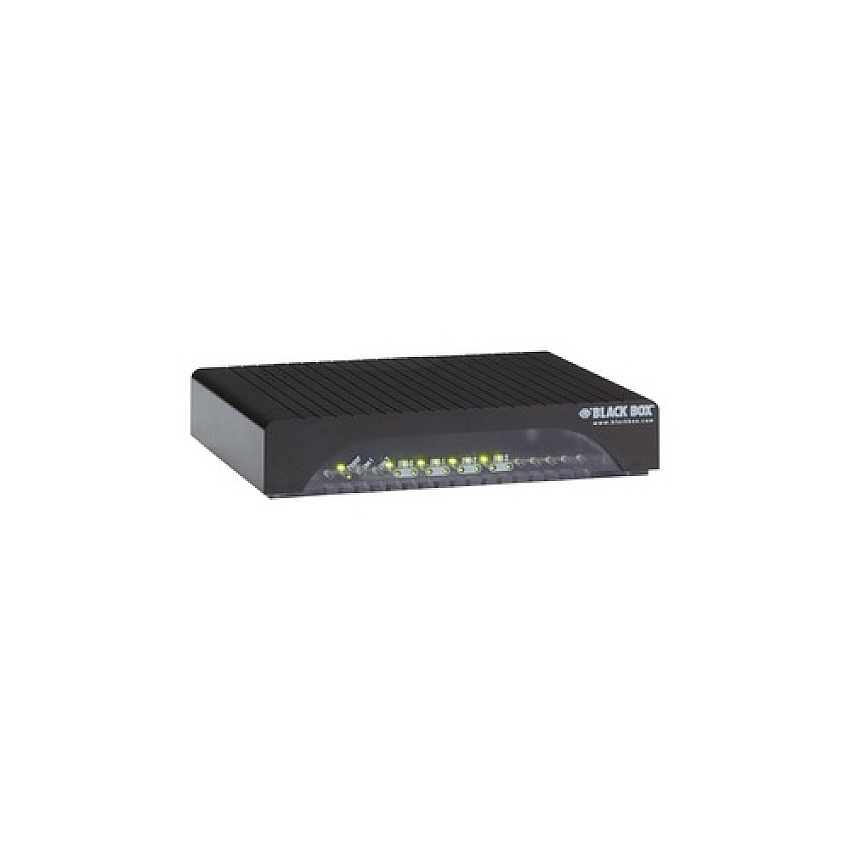

Black Box Ethernet Extender - 4-port, Gsa, Taa (LB510A-R3)

Brand

Black Box

Category

Black Box Technology - Black Box Electronics

Model

LB510AR3

Additional Information

Device Type:Ethernet LAN Extender Form Factor:External Cabling Type:RJ-45 Data Transfer Rate:100 Mbps Connectivity Technology:Wired Interfaces:Ethernet: 10BASE-T/100BASE-TX Max Transfer Distance:TBD Service & Support Type:1 Year Double Diamond Warranty (Standard) Features:- Provides data rates up to 15 Mbps over 2-wire, voice-grade wiring
- Selectable 64-kbps rates enable you to choose the bandwidth you need
- Has 4-Port integrated 10/100 Ethernet switch
- Probes voice-grade wiring to determine the optimum data rate supported
- Supports G.994.2 handshaking, enabling it to adapt the rate automatically to the existing line conditions
- Simple to set up and, once configured, operates transparently
- Transformer-coupled two-wire interface boasts 1500-VAC isolation
- Works with other extender/NTUs to provide interface conversion along with network termination and extension
- Max reach of 30 kft Width:1.61 Inch Depth:5.51 Inch Height:4.21 Inch Data Link Protocol:Fast Ethernet COO:UNITED STAT
