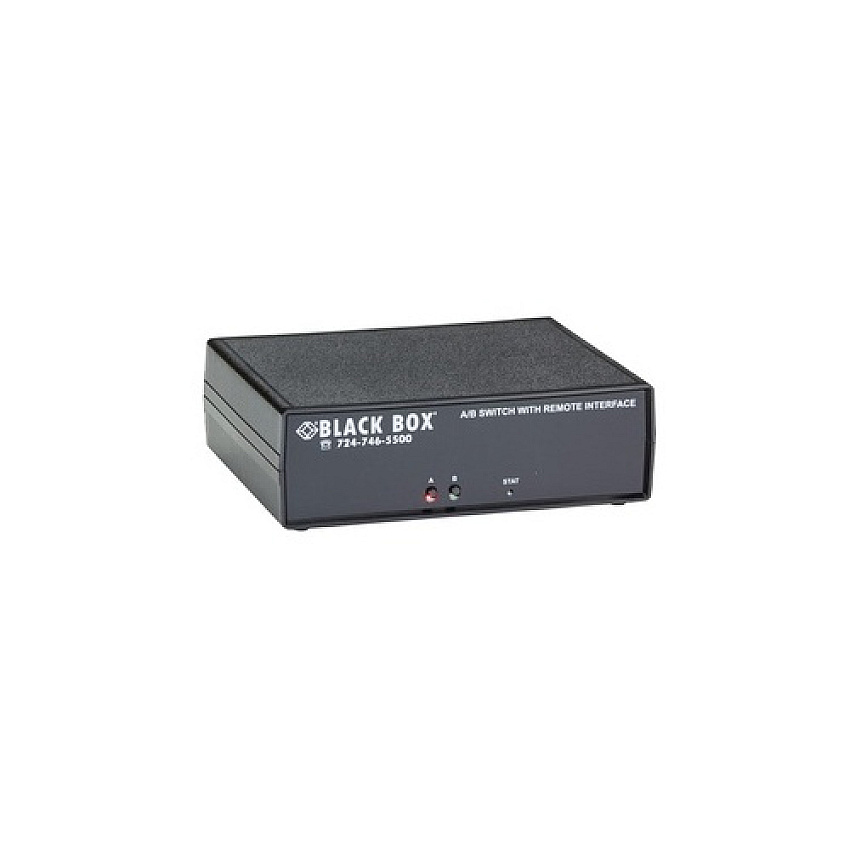

Black Box Db9 A/b Switch - Latching, Remote Control, Dry Contact, Gsa, Taa (SW1047A)

Brand

Black Box

Category

Black Box Technology - Black Box Electronics

Model

SW1047A

Additional Information

Network Device Type:TBD Data Transfer Rate:TBD Networking / Ports Qty:TBD Data Link Protocol:TBD Service & Support Type:1 Year Double Diamond Warranty (Standard) Features:- Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Mbps.
- Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.
- The connection state will be maintained if power fails or is removed.
- Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.
- Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.
- If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch. COO:UNIT
