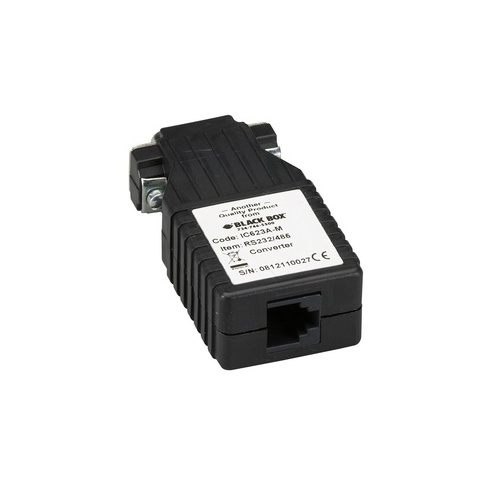

Black Box Async Rs-232 To Rs-485 Interface Converter - Db9 To Rj-11, Taa (IC623A-M)

Brand

Black Box

Category

Black Box Technology - Black Box Electronics

Model

IC623AM

Additional Information

Service & Support Type:1 Year Double Diamond Warranty (Standard) Features:- Transmit data up to 115 kbps or at distancesup to 4000 ft.
- Operates in point-to-point or multipoint applications.
- Operates 2-wire half-duplex or 4-wire half- or full-duplex.
- Async (data leads) only.
- Up to (32) RS-485 devices can be attached to create a large multi-drop network.
- The RS-485 driver is automatically enabled during each spacing state on the RS-232 side.
- The RS-232 connector is DB9; the RS-485 connector is RJ-11; other connectors are available (see Related Items).
- Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges.
- You can also "fine tune" impedance and "echo" characteristics for your individual application.
- For configuration, the converter features two internal 4-position DIP switches. COO:UNITED STATES
