Information

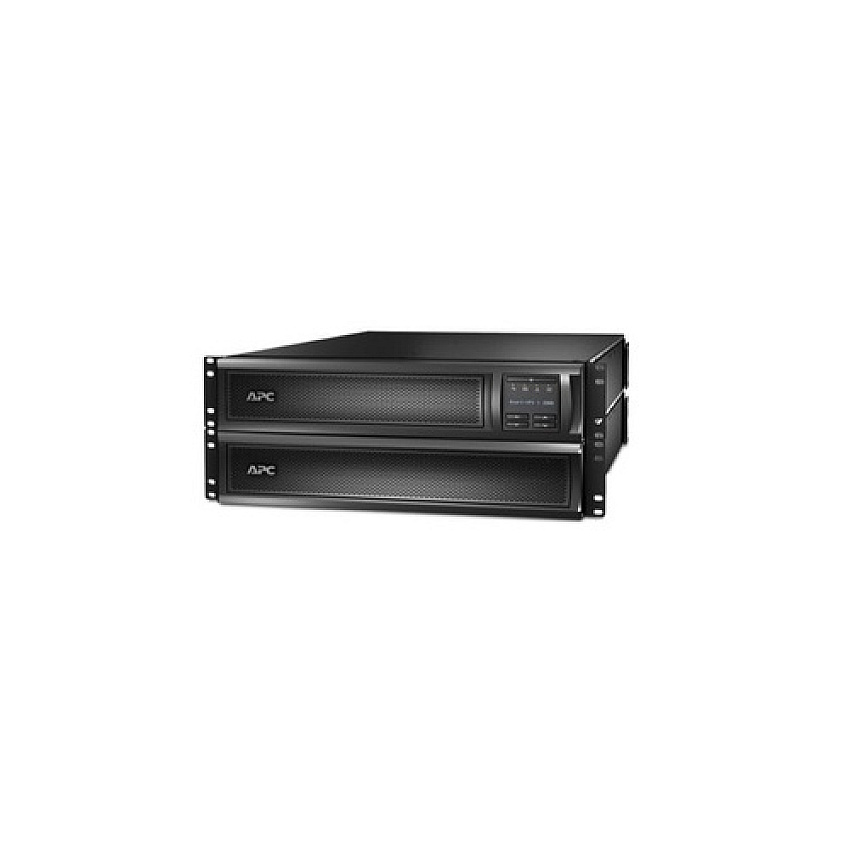

Product Description:APC Smart-UPS X SMX2KR2UNCX145 - UPS - 1800 Watt - 1920 VA - with APC UPS Network Management Card AP9631
Device Type:UPS - rack-mountable / external
Rack Size:2U
Weight:84.79 lbs
Input Voltage:AC 120 V
Output Voltage:AC 120 V
Power Capacity:1800 Watt / 1920 VA
Input Connectors:1 x power NEMA L5-20P
Output connectors:1 x power NEMA L5-20R ¦ 3 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R
Battery:Lead acid
Batteries Qty:1
Networking:RS-232, USB
Color:Black
Dimensions (WxDxH):17 in x 26.3 in x 3.3 in
Environmental Standards:ENERGY STAR
Manufacturer Warranty:3-year warranty
Bundled with:APC UPS Network Management Card AP9631
Designed For:P/N: AR2400, AR2401, AR2487, AR2487G, AR3300W, AR3350W, AR3355, AR3357X610, AR3357X617, AR4018A, AR4018IA, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IA, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IA, AR4038X432, NBWL0356A, SMX3000LVUS, SRT1000RMXLA, SRT1500RMXLA-NC
Device Type:UPS - rack-mountable / external
Height (Rack Units):2U
Color:Black
Bundled with:APC UPS Network Management Card AP9631
UPS Technology:Line interactive
Input Voltage:AC 120 V
Input Voltage Range:AC 70 - 153 V
Input Voltage Range (Adjustable):AC 75 - 154 V
Frequency Provided:50/60 Hz ± 3Hz
Frequency Required:50/60 Hz ± 3Hz
Input Connectors:1 x power NEMA L5-20P
Power Output Connectors Details:1 x power NEMA L5-20R ¦ 3 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R
Output Voltage:AC 120 V 50/60 Hz
Power Capacity:1800 Watt / 1920 VA
Output Waveform:Sinewave
Surge Suppression:Yes
Surge Energy Rating:540 Joules
Quantity:1
Technology:Lead acid
Recharge Time:3 hours
Features:Maintenance free, sealed, leak-proof
Remote Management Interface:RS-232, USB
Interfaces:1 x management (USB) ¦ 1 x management (RS-232)
Expansion Slots:1 (total) / 0 (free) x SmartSlot
Cables Included:Serial cable - external ¦ USB cable - external ¦ Power cable 10 ft
Rack Mounting Kit:Included
Equipment Protection Value:150000 US Dollars
Features:LCD display
Compliant Standards:CSA, TUV, BSMI, NOM, UL 1778, EN 50091-2, RoHS, FCC Part 15 A, VCCI Class A, EN 55022 Class A
ENERGY STAR:Yes
Service & Support:Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature:32 °F
Max Operating Temperature:104 °F
Humidity Range Operating:0 - 95%
Sound Emission:55 dBA
Width:17 in
Depth:26.3 in
Height:3.3 in
Weight:84.79 lbs
Shipping Width:23.5 in
Shipping Depth:34.2 in
Shipping Height:9.6 in
Shipping Weight:100 lbs
Designed For:P/N: ACCS1001, ACCS1002, ACCS1005, ACDC1015, ACDC1019, ACF002, ACF102BLK, AP5017, AP5606, AP5607, AP5616, AP9290, AR204A, AR2101, AR2102BLK, AR2400, AR2401, AR2487, AR2487G, AR2900, AR2901, AR3100SP2, AR3105, AR3150SP2, AR3155, AR3300W, AR3305, AR3350W, AR3355, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024, AR4024I, AR4024IA, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038I, AR4038IA, AR4038X432, AR7050, NBWL0356A, SMX3000LVUS, SRT1000RMXLA, SRT1500RMXLA-NC, SU2000R3X155
COO:Inquire
TAA compliance:Inquire
