Information

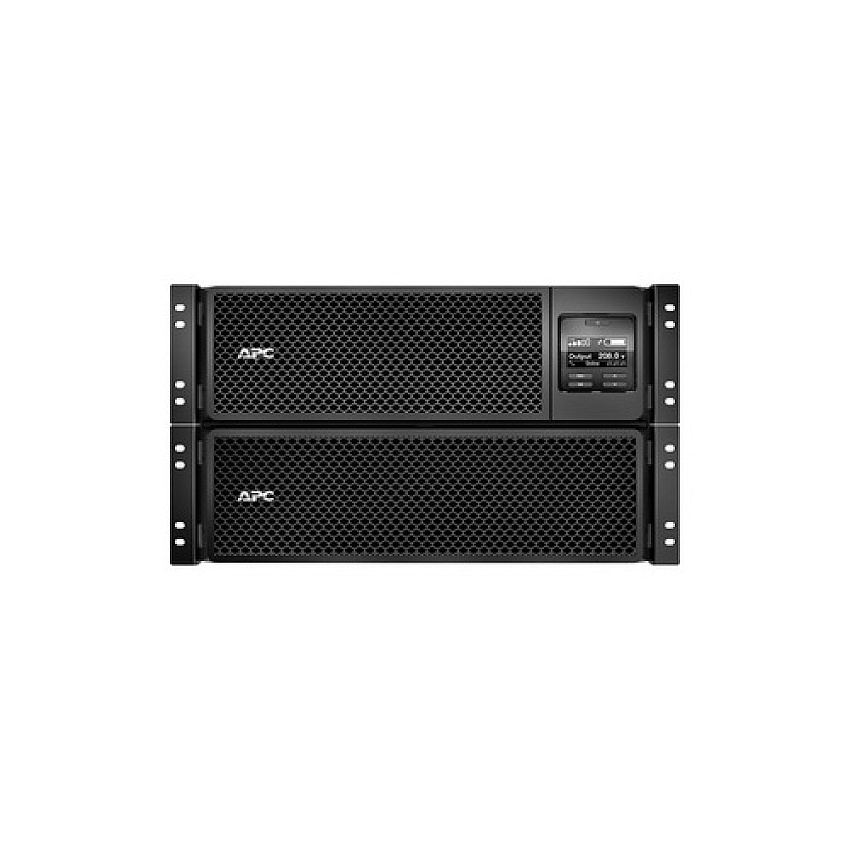

Product Description:APC Smart-UPS SRT 8000VA RM - UPS - 8000 Watt - 8000 VA
Device Type:UPS - rack-mountable
Rack Size:6U
Weight:245.99 lbs
Input Voltage:AC 208/220/240 V
Output Voltage:AC 208/220/240 V ± 3%
Power Capacity:8000 Watt / 8000 VA
Input Connectors:Hardwire 3-wire (2PH + G)
Output connectors:1 x hardwire 3-wire (2PH + G) ¦ 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 3 x IEC connector
Battery:Lead acid
Run Time (Up To):5 min at full load
Networking:Ethernet 10/100, USB
Included Accessories:Temperature sensor
Color:Black
Dimensions (WxDxH):17 in x 28.1 in x 10.4 in
Environmental Standards:ENERGY STAR
Manufacturer Warranty:3-year warranty
Designed For:P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A, SMX2000LVUS, SMX3000LVUS, SRT1000RMXLA, SRT1500RMXLA, SRT1500RMXLA-NC
Device Type:UPS - rack-mountable
Height (Rack Units):6U
Color:Black
UPS Technology:On-line
Input Voltage:AC 208/220/240 V
Input Voltage Range:AC 160 - 275 V
Input Voltage Range (Adjustable):AC 100 - 275 V
Frequency Provided:50/60 Hz
Frequency Required:40 - 70 Hz
Input Connectors:Hardwire 3-wire (2PH + G)
Power Output Connectors Details:1 x hardwire 3-wire (2PH + G) ¦ 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 3 x IEC connector
Output Voltage:AC 208/220/240 V ± 3% - 50/60 Hz
Power Capacity:8000 Watt / 8000 VA
Output Waveform:Sinewave
Surge Suppression:Yes
Surge Energy Rating:480 Joules
Efficiency:98%
Technology:Lead acid
Run Time (Up To):5 min at full load ¦ 14 min at half load
Recharge Time:1.5 hours
Features:Maintenance free, sealed, leak-proof
Remote Management Interface:Ethernet 10/100, USB
Interfaces:1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45
Expansion Slots:1 (total) / 1 (free) x SmartSlot
Included Accessories:Temperature sensor
Cables Included:USB cable - external
Rack Mounting Kit:Included
Features:Audible alarm, LCD display
Compliant Standards:UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20
Software Included:Drivers & Utilities
ENERGY STAR:Yes
Service & Support:Limited warranty - 3 years
Min Operating Temperature:32 °F
Max Operating Temperature:104 °F
Humidity Range Operating:0 - 95% (non-condensing)
Sound Emission:55 dBA
Width:17 in
Depth:28.1 in
Height:10.4 in
Weight:245.99 lbs
Shipping Width:23.6 in
Shipping Depth:3.3 ft
Shipping Height:18.1 in
Shipping Weight:286 lbs
Designed For:P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LV, SMX2000LVUS, SMX3000HVT, SMX3000LVUS, SRT1000RMXLA, SRT1500RMXLA, SRT1500RMXLA-NC, SUA3000R2IX38
COO:PHILIPPINES
TAA compliance:No
