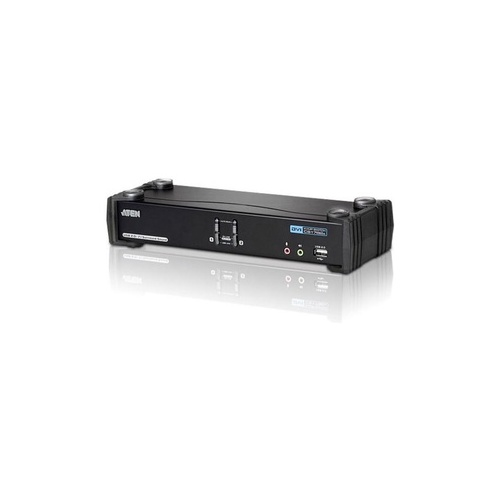

Aten 2-port Dvi Dual Link Kvm (CS1782A)

Brand

Aten

Category

Aten Technology - Aten Electronics

Model

CS1782A

Information

Device Type:KVM Switch Networking / Ports Qty:2 Interfaces:Console Ports 2 x USB Type A Female (rear panel) 1 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) 1 x 3.5mm Audio Jack Female (Blue) 1 x 3.5mm Audio Jack Female (Gray) 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Orange) 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel) KVM Ports 2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Blue) 2 x 3.5mm Audio Jack Female (Gray) 2 x 3.5mm Audio Jack Female (Black) 2 x 3.5mm Audio Jack Female (Orange) 2 x 3.5mm Audio Jack Female (Pink) Max Resolution (external):DVI Dual Link: 2560 x 1600 @ 60Hz; DVI Single Link: 1920 x 1200 @ 60Hz Width:10.63 Inch Depth:3.46 Inch Height:2.19 Inch Features:DVI digital and analog monitor support ? fully compliant with the DVI specifications, HDCP compatible , Support widescreen resolutions RoHS:Y COO:TAIWAN

Manufacturer Stock No.

CS1782A
